Swarnendu.dev

Sun Mar 10 2024

Eraser Clone - Document & Drawing Platform

Eraser Clone - Document & Drawing Platform

React

NextJS

Convex

Tailwind

TypeScript

ShadCN

Created a clone of the Eraser app with both document and drawing functionalities, authentication system using Kinde, and enhanced user interface features.

Overview of the project

Eraser Clone is a comprehensive document and whiteboard platform inspired by the popular Eraser.io app. It provides a collaborative environment for creating, editing, and sharing documents and drawings with a clean, intuitive interface.


Eraser Clone

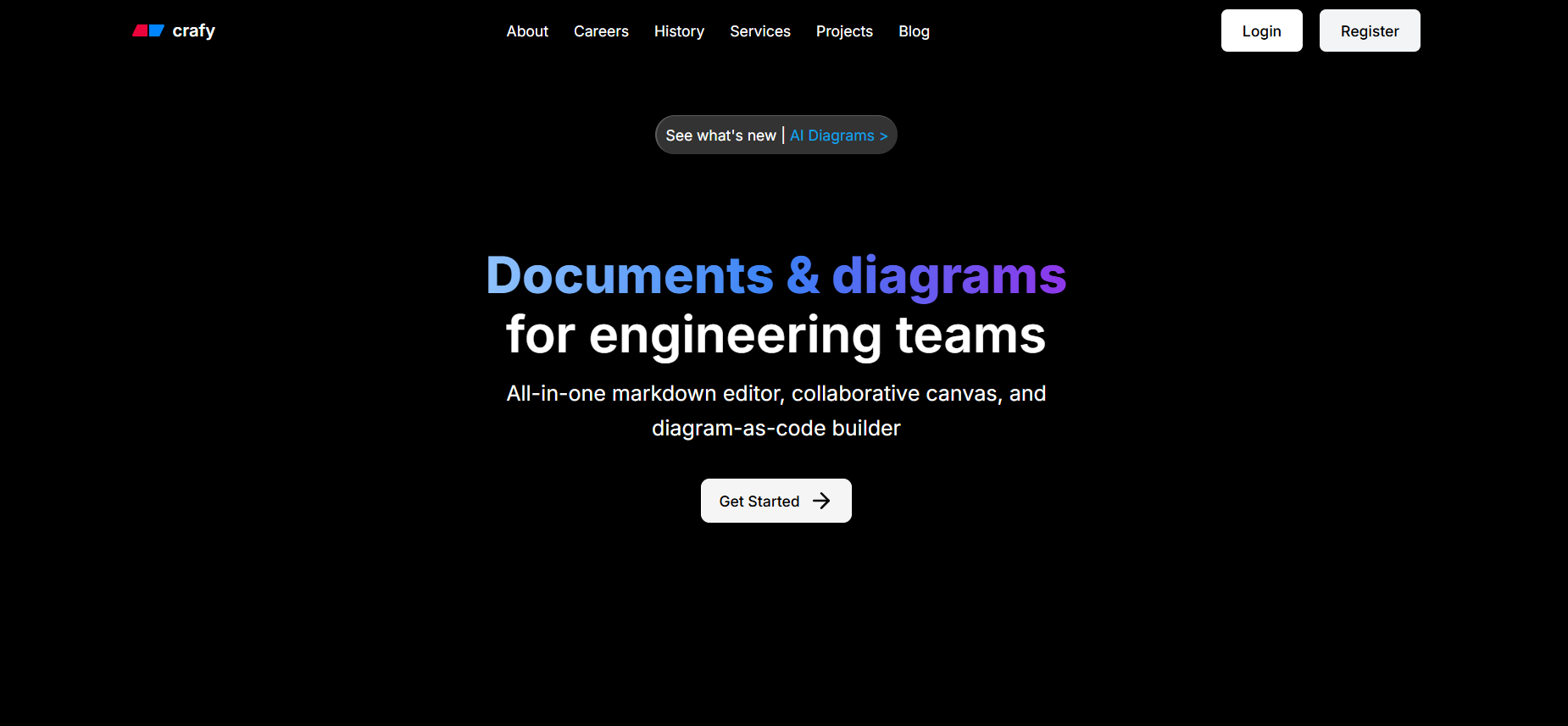

Eraser Clone Landing Page

Key Features

Document Editing

Create and edit rich documents with support for headings, lists, code blocks, embeds, and more. The document editor supports Markdown and provides a clean, distraction-free writing experience.

// Document editor component structure
const DocumentEditor = ({ documentId }: { documentId: string }) => {
  const document = useDocument(documentId);
  const editor = useEditor({
    extensions: [
      StarterKit,
      CodeBlockLowlight,
      Image,
      Embed,
      TaskList,
      TaskItem,
      // Additional extensions
    ],
    content: document?.content || "",
    onUpdate: ({ editor }) => {
      // Save changes to the database
      updateDocument({
        id: documentId,
        content: editor.getJSON(),
      });
    },
  });

  return (
    <div className="document-editor">
      <EditorProvider editor={editor}>
        <EditorContent />
        <FloatingMenu editor={editor} />
        <BubbleMenu editor={editor} />
      </EditorProvider>
    </div>
  );
};

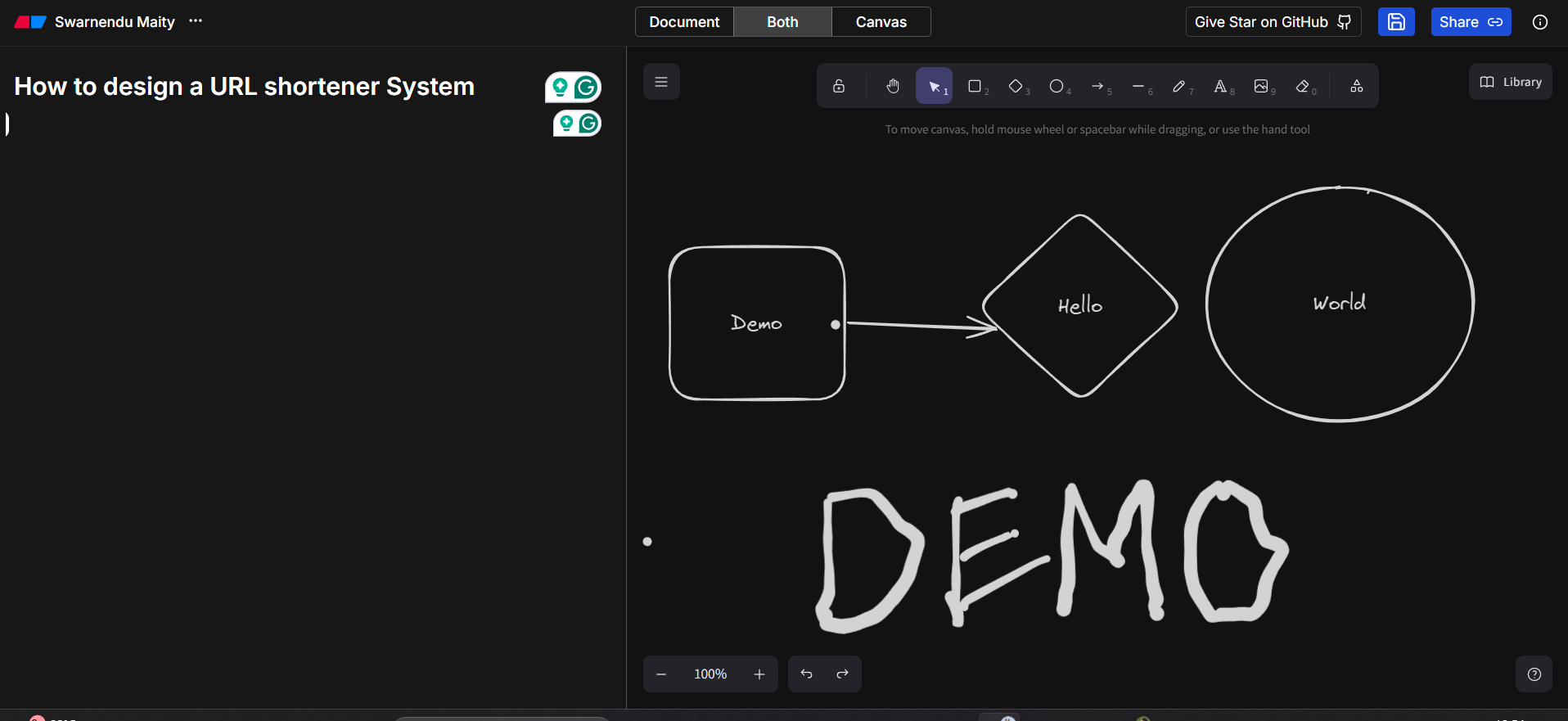

Drawing Canvas

Create diagrams, flowcharts, and illustrations using the drawing canvas. The canvas provides a variety of tools including shapes, connectors, text, and freehand drawing.

Authentication System

Integrated with Kinde authentication for secure user management:

// Authentication hooks and components
export const useAuth = () => {
  const { user, isLoaded } = useKindeAuth();

  return {
    user,
    isLoaded,
    isAuthenticated: isLoaded && !!user,
  };
};

export const RequireAuth = ({ children }: { children: React.ReactNode }) => {
  const { isAuthenticated, isLoaded } = useAuth();
  const router = useRouter();

  useEffect(() => {
    if (isLoaded && !isAuthenticated) {
      router.push("/auth/login");
    }
  }, [isAuthenticated, isLoaded, router]);

  if (!isLoaded || !isAuthenticated) {
    return <LoadingScreen />;
  }

  return <>{children}</>;
};

Real-time Collaboration

Multiple users can work on the same document or canvas simultaneously, with changes synced in real-time using Convex database:

// Convex real-time sync setup
export const documentSchema = defineSchema({
  documents: defineTable({
    title: v.string(),
    content: v.any(),
    workspaceId: v.id("workspaces"),
    userId: v.string(),
    isPublic: v.boolean(),
    lastUpdated: v.number(),
    collaborators: v.array(v.string()),
  })
    .index("by_workspace", ["workspaceId"])
    .index("by_user", ["userId"]),

  // Other tables...
});

// Mutations for real-time updates
export const updateDocument = mutation({
  args: {
    id: v.id("documents"),
    content: v.any(),
    title: v.optional(v.string()),
  },
  handler: async (ctx, args) => {
    const identity = await ctx.auth.getUserIdentity();
    if (!identity) {
      throw new Error("Unauthorized");
    }

    const document = await ctx.db.get(args.id);
    if (!document) {
      throw new Error("Document not found");
    }

    // Check permissions...

    return await ctx.db.patch(args.id, {
      content: args.content,
      title: args.title ?? document.title,
      lastUpdated: Date.now(),
    });
  },
});

Workspace Organization

Organize your documents and drawings in workspaces and folders, making it easy to manage and navigate through your content.

Enhanced UI Features

I've added several UI enhancements that weren't in the original Eraser app:

Module's Home Page Organization

The workspace homepage has been redesigned for better organization and navigation:

  1. Grid/List View Toggle: Switch between different views of your documents
  2. Advanced Filtering: Filter documents by type, date, and other attributes
  3. Custom Sorting Options: Sort by recently modified, alphabetical, or custom order

Dark/Light Mode Support

Fully implemented dark and light mode with smooth transitions:

// Theme toggle component
export function ThemeToggle() {
  const { setTheme, theme } = useTheme();

  return (
    <Button
      variant="outline"
      size="icon"
      onClick={() => setTheme(theme === "light" ? "dark" : "light")}
    >
      <Sun className="h-[1.2rem] w-[1.2rem] rotate-0 scale-100 transition-all dark:-rotate-90 dark:scale-0" />
      <Moon className="absolute h-[1.2rem] w-[1.2rem] rotate-90 scale-0 transition-all dark:rotate-0 dark:scale-100" />
      <span className="sr-only">Toggle theme</span>
    </Button>
  );
}

Collaborative Features

Enhanced collaboration with:

  1. User Presence: See who's actively viewing or editing a document
  2. Change History: Track changes and revert to previous versions
  3. Comments and Annotations: Leave feedback directly on documents and drawings

Technical Architecture

Eraser Clone is built with a modern tech stack:

  • Frontend: Next.js 14 with React and TypeScript
  • UI Components: ShadCN UI with Tailwind CSS
  • Database: Convex for real-time data synchronization
  • Authentication: Kinde Auth
  • Drawing Tools: Custom implementation using Canvas API and React
  • Document Editor: Custom implementation on top of Tiptap
  • Deployment: Vercel
├── app/
│   ├── (auth)/
│   │   ├── login/
│   │   └── signup/
│   ├── (dashboard)/
│   │   ├── documents/
│   │   └── boards/
│   └── api/
├── components/
│   ├── auth/
│   ├── dashboard/
│   ├── document/
│   ├── board/
│   └── ui/
├── convex/
│   ├── schema.ts
│   ├── documents.ts
│   ├── boards.ts
│   └── users.ts
├── lib/
│   ├── hooks/
│   └── utils/

Performance Optimizations

  1. Server Components: Utilizing Next.js 14 server components for improved performance
  2. Incremental Rendering: Loading only the necessary parts of documents
  3. Optimistic Updates: Providing immediate feedback while syncing with the server
  4. Debounced Saving: Reducing database writes by debouncing save operations

Getting Started

# Clone the repository
git clone https://github.com/swarnendu19/eraser-clone.git

# Install dependencies
cd eraser-clone
npm install

# Set up environment variables
cp .env.example .env

# Start the development server
npm run dev

Visit http://localhost:3000 to start using Eraser Clone.

Future Plans

  1. Templates: Add document and board templates for faster creation
  2. Presentation Mode: Present documents and boards directly from the app
  3. Export Options: Export to PDF, Image, and other formats
  4. AI Integration: AI-powered features like content generation and auto-layouts
  5. Mobile Apps: Native mobile applications for iOS and Android
